Prime Power：300 kVA / 240 kW
Standby Power: 330 kVA / 264 kW
Engine Model：CAT C9
Engine Speed: 1500 RPM
Frequency: 50 Hz

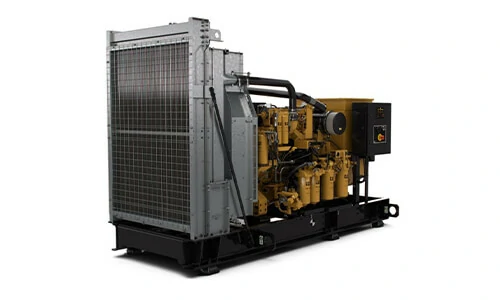

Caterpillar C9 Diesel Generator Set
Cat C9 Series diesel generator sets provide reliable power from 230 kVA to 330 kVA at 50 Hz and are designed to meet ISO 8528-5 transient response requirements. All C9 generator sets meet EPA steady state emergency service (Tier 3) emission standards. Integrated Cat® Product Link™ control system provides real-time tracking of genset health and operating parameters. Cat Smart Option ensures your genset starts and runs as expected when it’s ready, optimized for 5% lower fuel consumption and longer run time between fuel fills for lower operating costs.
General Specifications of C9 Series
| Engine Model: | C9 |
| Displacement: | 8.8 L |
| Bore * Stroke: | 112 mm * 149 mm |
| Advertised Power: | 240 kW / 300 kVA |
| Prime Power: | 300 kVA / 240 kW |
| Standby Power: | 330 kVA / 264 kW |
| Rated Speed: | N/A |
| Aspiration: | Turbocharged Air-to-Air Aftercooled |
| Dry Weight: | 2261 kg |
| Packing Size(L * W * H): | N / A |
Engine Model | Prime Power | Governor Type | Engine Model | Prime Power | Governor Type | |
| CAT C9-DE330E0 | 240 kW / 300 kVA | Electronic ADEM™ A4 | ||||
| ——END—— | ||||||
Caterpillar C9 Diesel Generator Set
This is the list of all series of Caterpillar C9 diesel generator set.
